PRODUCTS LIST Home > Product Show

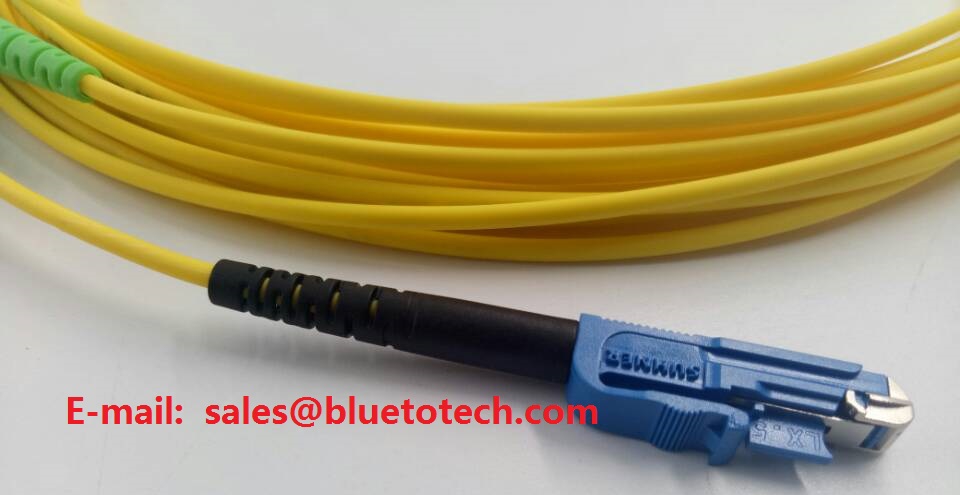

Fiber Optic LX.5/UPC to SC/APC SM simplex patch cord

Product Numbers: 20191023102140

Product description: Original brand LX.5/UPC to SC/APC SM simplex fiber optic patch cord

INTRODUCTION

Original brand LX.5/UPC to SC/APC SM simplex fiber optic patch cord


Application:

Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication



Specification:

Parameter Unit FC, SC, LC ST, MU MT-RJ, MPO E2000
SM MM SM MM SM MM SM
PC UPC APC PC PC UPC PC PC UPC PC PC APC
Insertion loss(typical) dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.3
Return loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥30 ≥45 ≥50 ≥35 ≥55 ≥75
Operating wavelength nm 1310, 1510 1310, 1510 1310, 1510 1310, 1510
Exchangeability dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Vibration dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Operating temperature -40~75 -40~75 -40~75 -40~75
Storage temperature -45~85 -45~85 -45~85 -45~85
Cable diameter mm φ3.0, φ2.0, φ0.9 φ3.0, φ2.0, φ0.9 φ3.0, φ2.0, φ0.9 φ3.0, φ2.0, φ0.9


Image:
