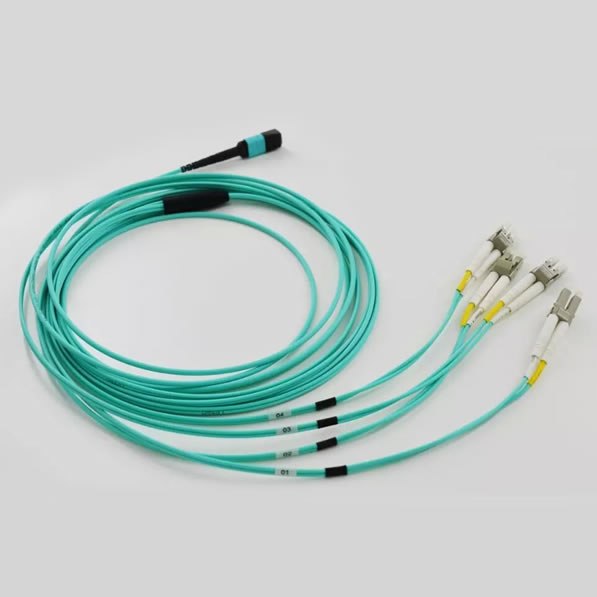

MPO-LC OM3 patch cord
Application:
Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication
Specification:
Parameter
|
Unit
|
FC, SC, LC
|
ST, MU
|
MT-RJ, MPO
|
E2000
|
SM
|
MM
|
SM
|
MM
|
SM
|
MM
|
SM
|
PC
|
UPC
|
APC
|
PC
|
PC
|
UPC
|
PC
|
PC
|
UPC
|
PC
|
PC
|
APC
|
Insertion loss(typical)
|
dB
|
≤0.3
|
≤0.2
|
≤0.3
|
≤0.2
|
≤0.3
|
≤0.2
|
≤0.2
|
≤0.3
|
≤0.2
|
≤0.2
|
≤0.3
|
≤0.3
|
Return loss
|
dB
|
≥45
|
≥50
|
≥60
|
≥30
|
≥45
|
≥50
|
≥30
|
≥45
|
≥50
|
≥35
|
≥55
|
≥75
|
Operating wavelength
|
nm
|
1310, 1510
|
1310, 1510
|
1310, 1510
|
1310, 1510
|
Exchangeability
|
dB
|
≤0.2
|
≤0.2
|
≤0.2
|
≤0.2
|
Vibration
|
dB
|
≤0.2
|
≤0.2
|
≤0.2
|
≤0.2
|
Operating temperature
|
℃
|
-40~75
|
-40~75
|
-40~75
|
-40~75
|
Storage temperature
|
℃
|
-45~85
|
-45~85
|
-45~85
|
-45~85
|
Cable diameter
|
mm
|
φ3.0, φ2.0, φ0.9
|
φ3.0, φ2.0, φ0.9
|
φ3.0, φ2.0, φ0.9
|
φ3.0, φ2.0, φ0.9
|
Ordering Information:
LC/ UPC–LC/ UPC-SM- DX-Φ3.0–2M
① ② ① ② ③ ④ ⑤ ⑥
① Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
② Ferrule End-face: PC, UPC, APC
③ Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
④ Cable Quantity: “DX” means Duplex / “SX” means Simplex
⑤ Cable Diameter: Ф3.0mm, Ф2.0mm, Ф0.9mm
⑥ Cable Length: 1, 2, 3 meter or customized
⑦ Cable type: PVC, LSZH, OM3, OFNR, OFNP
